Laser Cutting Material Handling Conveyors
Laser cutting operations produce finished parts from sheet metal at high speeds, creating material handling challenges for part removal, scrap disposition, and finished sheet transport. Custom Conveyor & Equipment Corporation engineers conveyors that automate material flow around laser cutting equipment, reducing manual handling, improving throughput, and enabling lights-out operation of laser systems.
Modern fiber laser cutting systems can process sheet metal at remarkable speeds—a 3kW fiber laser cutting 14-gauge mild steel runs at 400+ inches per minute. This cutting speed creates corresponding material handling demands. Finished parts must clear the laser table quickly to prevent interference with subsequent cuts. Scrap skeleton removal cannot delay start of the next sheet. Automation of these material flow steps unlocks laser productivity potential that manual handling constrains.
Automated Part Removal from Laser Tables
Part Ejection and Collection
Laser-cut parts fall through cutting table openings onto collection systems positioned below. Small parts may drop freely while larger parts require controlled lowering preventing damage from impact. Part collection conveyors must capture parts of varying sizes, prevent stacking or jamming, and transport finished parts to sorting or packaging operations.
We design part collection conveyors positioned beneath laser cutting tables with access for installation and maintenance in the confined space under cutting equipment. Belt or chain construction provides continuous support surfaces capturing parts as they drop from cutting tables. Gentle inclines transport parts away from directly under the table preventing accumulation that would interfere with subsequent part ejection. Side rails guide parts onto conveyor surfaces preventing parts from falling beside collection systems.
Collection conveyor speed is controlled to match laser production rates. Variable frequency drives enable throughput adjustment preventing part pile-ups during high-speed cutting operations or accommodating slower rates when cutting thick materials. Sensor integration detects part accumulation triggering automatic speed adjustment or alarm conditions if collection systems cannot keep pace with laser output.
Part Orientation and Separation
Parts exiting collection conveyors may be randomly oriented, overlapping, or nested together. Downstream sorting, stacking, or packaging operations often require parts to be separated and properly oriented. Orientation and separation systems integrate with collection conveyors preparing parts for automated handling by subsequent equipment.
Singulation mechanisms separate overlapped parts using vibration, air jets, or mechanical separation devices. Parts advance individually to downstream operations preventing jams in automated stacking or sorting equipment. Orientation stations use vision systems or mechanical guides rotating parts to consistent orientations required by robotic handling systems or automated stacking equipment.
Part identification systems read engraved codes, scan barcodes, or use vision recognition linking individual parts to cutting programs and production orders. This data enables automated sorting routing parts to appropriate finishing operations, packaging locations, or customer order fulfillment areas based on part identification information.
Scrap Skeleton Removal and Processing
Sheet Skeleton Conveyance
After laser cutting removes parts, remaining sheet skeletons contain valuable scrap material requiring recovery for recycling. Skeletons are large—matching full sheet dimensions up to 6’x12′ or larger—but structurally weak with extensive cutouts where parts were removed. Material handling must support fragile skeletons without causing collapse while transporting material from laser tables to scrap collection points.

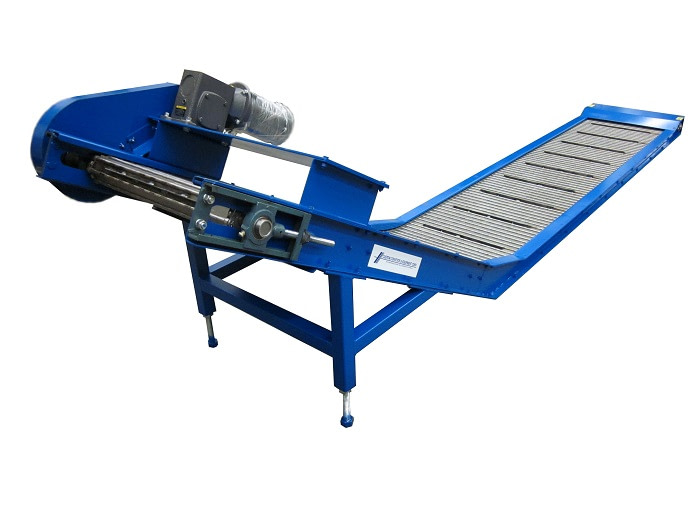

Scrap conveyors provide adequate support preventing skeleton sagging through conveyor openings. Chain conveyors with narrow spacing support weakened material. Belt conveyors offer continuous support surfaces. Width matches maximum sheet dimensions handled by laser cutting equipment. Structural frameworks resist deflection under accumulated weight of multiple skeletons on conveyor surfaces.
Skeleton removal timing coordinates with laser cutting cycles. Conveyors advance clearing table surfaces immediately after cutting completion enabling rapid loading of subsequent sheets. Automated synchronization between laser controllers and scrap conveyor controls eliminates manual coordination improving overall system throughput.
Scrap Processing Integration
Collected skeletons advance to scrap processing equipment including shears, balers, or scrap bins. Conveyors position material for manual or automated scrap handling. Some operations shear skeletons into smaller pieces for efficient scrap container packing. Others bale material for shipment to recycling facilities. Conveyor systems adapt to specific scrap processing methods used in customer facilities.
Scrap conveyors incorporate features supporting various disposal methods. Elevated discharge heights enable gravity drop into scrap containers or balers. Side discharge configurations allow material ejection perpendicular to conveyor direction where linear space is limited. Metering mechanisms control scrap flow into balers or shears preventing equipment overload.
Raw Sheet Loading Automation
Laser cutting productivity benefits significantly from automated sheet loading reducing downtime between cutting cycles. Automated loading systems require conveyors transporting raw sheet material from storage to laser table positions. Sheet weights range from light-gauge material under 50 pounds to thick plate exceeding several hundred pounds requiring substantial conveyor capacity.
We design sheet loading conveyors with capacity accommodating maximum sheet weights in customer material inventories. Roller or belt construction provides smooth surfaces preventing scratches on finished sheet surfaces. Width spans full sheet dimensions plus adequate clearance for alignment operations. Elevation matches laser table height or incorporates lift mechanisms positioning sheets for automated pickup by laser loading systems.
Sheet feeding mechanisms meter individual sheets from stacked material supplying one sheet per laser cutting cycle. Magnetic separators lift top sheets from stacks. Vacuum systems grip individual sheets. Mechanical fingers separate sheets using friction differential between top sheet and lower stack materials. Feed mechanism selection depends on material types, sheet sizes, and production rate requirements.
Integration with laser control systems coordinates sheet feeding with cutting completion cycles. Conveyors advance sheets to loading positions timed with laser table availability. Sensors confirm sheet presence and proper positioning before laser loading sequences initiate. Error detection identifies misfeeds or doubled sheets preventing equipment jams or cutting errors.
Complete Material Flow Automation
Comprehensive laser cutting automation integrates sheet loading, part removal, and scrap handling into coordinated systems maximizing laser productivity. Material flows continuously from raw sheet storage through cutting operations to finished part collection with minimal manual intervention. This integration enables extended unattended operation—nights, weekends, or full shifts—multiplying laser equipment utilization.
Custom Conveyor designs integrated material handling systems considering entire material flow from raw material input through finished part output. Conveyor speeds are coordinated maintaining balanced flow throughout the system. Storage capacity in automated loading systems provides adequate sheet supply for planned unattended operation duration. Part collection capacity accommodates accumulated production before requiring manual unloading.
Control system integration connects conveyors with laser cutting equipment, safety systems, and production management software. Automated handshakes coordinate material movement with laser cutting cycles. Safety interlocks prevent conflicting motion between conveyors and laser loading mechanisms. Production tracking systems count parts produced, monitor scrap generation, and provide efficiency metrics for operational analysis.
Material Protection Throughout Handling
Laser cutting processes materials with finished surfaces requiring protection from scratches, dents, or contamination during material handling. Conveyors contact sheet materials and finished parts throughout production flow creating opportunities for surface damage if improper materials or configurations are used.
We specify conveyor contact surfaces using materials that will not mar finished metal surfaces. Soft roller covers, smooth belt compounds, or plastic chain components provide gentle product contact. Hard metal-to-metal contact is avoided where products have critical surface finish requirements. Support point spacing prevents sheet sagging that could cause surface contact with structural components.
Protective films or coatings on premium finish materials require special handling preventing film damage or adhesive contamination from conveyor contact. Belt materials are selected for compatibility with protective film adhesives. Transfer mechanisms prevent sharp bends or compression forces that could damage protective coatings. Where films are removed after cutting, film scrap handling integrates with conveyor systems preventing film accumulation interfering with part or scrap conveyance.
Space-Efficient Integration with Laser Equipment
Laser cutting equipment often operates in facilities with limited floor space requiring compact conveyor configurations. Under-table part collection occurs in restricted spaces between cutting table and floor. Sheet loading systems must fit within available space around laser equipment while providing adequate material storage capacity. Design creativity is often required fitting functional material handling into constrained physical envelopes.
Custom Conveyor approaches space-limited applications through detailed analysis of available space and material flow requirements. We develop 3D models of laser equipment and surrounding facility areas identifying conveyor routing opportunities. Compact conveyor designs maximize functionality within available space. Vertical stacking, folded conveyor paths, or multi-level systems may be employed when horizontal space is limited.
Our Cedar Rapids fabrication capabilities enable custom conveyor construction precisely fitting available space rather than forcing facility modifications to accommodate standard equipment. The 3kW fiber laser cutting system and 300-ton press brake produce components matching specific dimensional requirements of tight-tolerance applications. Welding capabilities across carbon steel, stainless steel, and aluminum support material selection appropriate for specific application requirements and customer preferences.
Understanding Laser Cutting Material Flow
Custom Conveyor & Equipment Corporation has operated from Cedar Rapids, Iowa since 1984, designing and building material handling systems for metal fabrication operations including laser cutting facilities. Our own 3kW fiber laser cutting system with 6’x12′ bed capacity provides direct experience with laser cutting production and associated material handling demands.
This practical knowledge informs our understanding of laser cutting material flow challenges. We recognize the space constraints around laser equipment, the timing requirements coordinating material handling with cutting cycles, and the throughput rates achievable with properly designed automation. Our experience extends beyond theoretical conveyor engineering to practical application of material handling supporting high-productivity laser cutting operations.
We approach laser cutting conveyor projects through detailed discussion of your specific equipment, material types, production volumes, and facility constraints. Generic automation packages rarely match the specific requirements of individual facilities. Our custom engineering develops solutions tailored to your laser equipment and production requirements rather than forcing your operation to adapt to pre-configured standard systems.
Laser Cutting Material Handling Solutions
Custom Conveyor & Equipment Corporation designs conveyor systems for part removal, scrap handling, and sheet loading automation in laser cutting operations. Our engineering team can evaluate your laser cutting material flow and develop automation solutions improving productivity and enabling extended unattended operation.
Contact our Cedar Rapids facility at (319) 449-3322 or visit /contact/ to discuss laser cutting material handling requirements.
