Heavy Industry Conveyor Systems
Foundries pouring tons of molten metal. Steel mills processing massive structural members. Heavy equipment manufacturers assembling machinery that itself weighs multiple tons. These heavy industry environments demand material handling equipment engineered for extreme loads, harsh conditions, and unforgiving service requirements. Since 1984, Custom Conveyor & Equipment Corporation has been designing and building conveyor systems for heavy industry applications where failure isn’t an option and lightweight construction doesn’t survive.
From our Cedar Rapids, Iowa facility, we engineer heavy-duty conveyors using fabrication capabilities specifically suited to extreme service: a 300-ton press brake for forming heavy structural members, carbon steel welding for robust frame assemblies, and a 3kW fiber laser for precision cutting of heavy-gauge materials. Our conveyor systems have supported loads from a few hundred pounds through heavy units approaching 6 tons per unit.
Engineering for Extreme Loads
Heavy industry loads test the limits of material handling equipment. A casting fresh from a foundry mold weighs hundreds or thousands of pounds. Structural steel beams measure lengths in tens of feet and weights in tons. Assembled heavy equipment combines mass with awkward geometries that concentrate loads at specific support points.
Structural Design Philosophy
Conveyor systems moving heavy industrial products require engineering focused on structural integrity. Frames must resist deflection under load—sagging conveyor structures cause alignment problems, premature wear, and eventual failure. Support members need adequate section modulus to handle bending moments. Connection points must transfer loads without stress concentration that leads to fatigue cracks.
Custom Conveyor’s structural engineering for heavy industry conveyors uses conservative design factors and robust construction methods. We don’t optimize for minimum material use—we design for reliable long-term operation under extreme loads. Our 300-ton press brake forms heavy-gauge structural members with the rigidity heavy-duty applications require. Carbon steel welding produces frame assemblies capable of supporting loads that would destroy lighter construction.
Drive System Capacity
Moving heavy loads requires substantial drive torque, particularly during starting when static friction must be overcome or when moving products up inclines. Undersized drive systems stall under load, overheat during operation, or fail prematurely from overload.
We engineer heavy industry conveyor drive systems with capacity for your actual loads plus appropriate safety factors. This includes selecting motors with adequate power ratings, using gear reducers that provide necessary torque multiplication, and designing drive component mounting that resists the reaction forces heavy loads create.
Component Selection for Heavy Duty Service
Standard industrial conveyor components—bearings, chains, rollers, belts—have load ratings appropriate for typical applications. Heavy industry often exceeds these ratings. We select components specifically rated for heavy-duty service or design custom solutions when commercial components prove inadequate.
Bearings for heavy industry conveyors use robust designs with large load capacities. Chains are industrial grades capable of handling shock loads and extreme tensions. Rollers have substantial shaft diameters and heavy-wall construction. Every component selection considers the demanding service conditions heavy industry creates.
Surviving Harsh Industrial Environments
Heavy industry often creates some of the harshest conditions material handling equipment encounters. Heat from foundry operations, abrasive dust from grinding or cutting, impact from rough handling, and general industrial abuse affect conveyor performance and longevity.
High Temperature Operation
Foundry conveyors may transport castings still radiating heat from pouring operations. Steel mill conveyors handle products at elevated temperatures. Even ambient conditions in some heavy industry facilities exceed temperatures that would be considered extreme in other manufacturing environments.
Custom Conveyor engineers high-temperature conveyors using materials and components rated for elevated temperature operation. This includes heat-resistant belt materials when belt conveyors are appropriate, bearings and lubricants specified for high-temperature service, and structural designs that accommodate thermal expansion without binding or creating stress concentrations.
Abrasive Conditions
Heavy industry frequently generates abrasive dust or debris. Foundry operations produce sand and metal particles. Steel fabrication creates metal dust and grinding swarf. These abrasives accelerate wear on conveyor components, particularly bearings, chains, and sliding surfaces.
We address abrasive environments through sealed bearings that exclude contamination, hardened components that resist abrasive wear, and designs that minimize exposed sliding surfaces where abrasives cause problems. Proper engineering for abrasive conditions significantly extends conveyor service life in heavy industry applications.
Impact Loading
Heavy industrial products don’t always load gently onto conveyors. Castings drop from molds. Steel sections swing from cranes before setting down. Forgings exit presses with substantial impact. Conveyor designs must survive these shock loads without damage.
Heavy industry conveyors need robust construction that absorbs impact without structural damage or permanent deformation. This includes adequate structural section modulus to resist impact bending moments, ductile materials that yield rather than fracturing under shock loads, and design details that distribute impact forces across supporting structure rather than concentrating stress.
Heavy Industry Applications
Foundry Operations
Foundries produce metal castings by pouring molten metal into molds. After solidification and cooling, castings must be removed from molds, cleaned, and moved through finishing operations. This process creates some of the most demanding conditions conveyors encounter.
Foundry conveyors handle products at elevated temperatures, operate in environments contaminated with molding sand and metal dust, and transport heavy castings with rough surfaces that accelerate wear. Custom Conveyor engineers foundry conveyors specifically for these conditions—robust construction, heat-resistant materials, sealed components to exclude contamination, and structural capacity for heavy casting loads.
Steel Mills & Fabrication
Steel production and fabrication operations handle products ranging from hot-rolled structural shapes to fabricated assemblies weighing multiple tons. Conveyor systems in these facilities must support extreme weights while operating reliably in industrial environments.
Steel industry conveyors typically use heavy-duty chain configurations capable of handling product weights and lengths that would overwhelm other conveyor types. We engineer these systems with structural capacity for your largest products, drive systems capable of moving heavy steel loads, and construction methods that provide long-term reliability in demanding service.
Heavy Equipment Manufacturing
Manufacturers producing construction equipment, agricultural machinery, mining equipment, or industrial machinery assemble products that themselves are heavy industrial equipment. Material handling for these operations involves moving large components, positioning heavy assemblies, and transporting completed machines.
Heavy equipment manufacturing conveyors must accommodate large product envelopes, support substantial weights, and often integrate with overhead cranes or other material handling systems. Custom Conveyor designs these systems for the specific products being manufactured, whether tractor components, excavator assemblies, or other heavy machinery.
Heavy-Duty Conveyor Types
Chain Conveyors
Industrial chain conveyors excel at heavy industry applications. Steel chains capable of handling multi-ton loads provide positive drive force for extreme weights. Multiple chain strands distribute loads across conveyor width. Heavy structural frames resist deflection under load.
Custom Conveyor engineers chain conveyors with configurations appropriate for heavy industry requirements. This includes selecting industrial-grade chains rated for your loads, designing track or guide rail systems that support and guide chains, and providing drive systems capable of moving heavy products reliably.

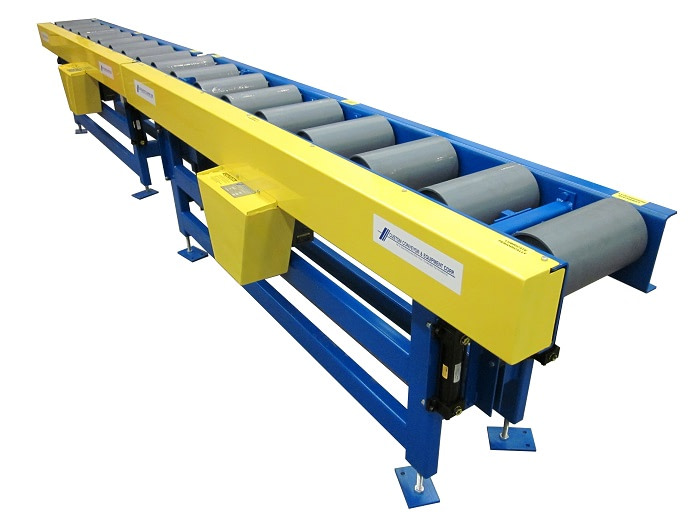

Heavy-Duty Roller Conveyors
When product bottom surfaces permit roller contact, heavy-duty roller conveyors provide reliable transport for industrial loads. Large-diameter rollers with substantial shafts and heavy bearings support product weights. Robust frames prevent deflection that would cause binding or alignment problems.
We design heavy industry roller conveyors with components specifically rated for extreme service. Roller shafts use diameters appropriate for bending moments. Bearings are industrial grades with large load capacities. Frame structures resist deflection under fully-loaded conditions.
Powered Transfer Cars
Extremely heavy loads or products with dimensions that prevent conventional conveyor use may require powered transfer cars—wheeled platforms that ride on rails, moving heavy products between facility locations. These systems handle loads that exceed practical limits for belt, roller, or even chain conveyors.
Custom Conveyor has designed transfer car systems for loads approaching our structural capacity of 6 tons per unit. These applications require careful structural engineering, drive systems with substantial power capacity, and rail installations that provide stable support for heavy loads.
Heavy-Duty Fabrication Capabilities
Structural Forming
Our 300-ton press brake with 12-foot bed capacity enables forming of heavy-gauge steel into structural members for heavy industry conveyors. This equipment can bend thick materials that lighter press brakes cannot process, producing the robust structural components extreme-duty applications require.
Heavy structural forming provides the frame members that resist deflection under load, the mounting brackets that transfer forces to facility structures, and the component supports that maintain alignment during operation. This capability is fundamental to building conveyors that survive heavy industry service.
Heavy Material Laser Cutting
While laser cutting is often associated with thin materials, our 3kW fiber laser processes heavy-gauge steel sheets used in heavy industry conveyor construction. This provides precise cutting of thick materials—important when components must fit accurately despite substantial material thickness.
Laser cutting heavy materials for industrial conveyors produces components with accurate dimensions and clean edges, enabling proper fit during assembly and reducing fabrication time compared to traditional cutting methods.
Heavy-Duty Welding
Heavy industry conveyors require welding that produces joints as strong as base materials. Our carbon steel welding capabilities create frame assemblies that maintain structural integrity under extreme loads and harsh operating conditions.
Welding heavy structural members requires appropriate procedures, proper joint preparation, and skilled execution. Custom Conveyor’s welding produces heavy industry conveyor frames that perform reliably under demanding service conditions.
Safety Considerations for Heavy Loads
Moving multi-ton loads on conveyor systems creates significant safety responsibilities. Structural failures, unexpected movements, or control malfunctions with heavy products can cause serious injuries or fatalities.
Structural Safety Factors
Heavy industry conveyors must include appropriate structural safety factors—designing for loads significantly higher than normal operating conditions. This provides margins that accommodate unexpected load concentrations, impact events, or material property variations.
Custom Conveyor applies conservative design factors to heavy industry conveyor structures. We engineer for worst-case loading scenarios, not ideal conditions. This approach provides safety margins that protect workers and facilities from consequences of structural failures.
Control System Safety
Conveyor systems moving heavy loads require controls that prevent hazardous conditions. Emergency stops must be readily accessible. Guards and interlocks should prevent access to dangerous areas during operation. Control systems need fail-safe designs that prevent unexpected movements.
We engineer heavy industry conveyor controls with appropriate safety features. This includes emergency stop devices, guard interlocks, and control logic that defaults to safe states during faults or power failures.
Engineering Heavy Industry Conveyors
Define Your Need
Heavy industry conveyor projects require thorough understanding of your specific application. What are your maximum product loads? What are typical load ranges? What are product dimensions and geometries? What are the environmental conditions? What are the operational requirements?
Custom Conveyor’s engineering process begins with detailed examination of your heavy industry application. We need to understand the extreme conditions your conveyor will face to engineer systems that survive and perform reliably.
Engineer A Solution
With comprehensive understanding of your heavy industry requirements, our engineering team develops conveyor designs specifically addressing extreme loads and harsh conditions. Structural analysis ensures adequate capacity. Component selection emphasizes heavy-duty service ratings. Materials and construction methods address environmental extremes.
We provide engineering documentation for review before fabrication. This allows verification that proposed designs address all application requirements and safety considerations.
Deliver For You
Approved heavy industry conveyor designs move to fabrication in our Cedar Rapids facility. Our heavy-duty fabrication capabilities—300-ton press brake, fiber laser cutting, and robust welding—produce conveyor systems engineered for extreme service.
This integrated engineering and fabrication approach ensures heavy industry conveyors are built to specifications developed specifically for demanding applications, not generic designs adapted from lighter-duty equipment.
Four Decades of Heavy-Duty Experience
Since 1984, Custom Conveyor & Equipment Corporation has been engineering material handling solutions for demanding industrial applications. Forty years of experience with heavy loads and harsh conditions has developed our understanding of what heavy industry conveyors require to survive and perform reliably.
We’ve learned that heavy industry applications demand conservative engineering, robust construction, and quality fabrication. Lightweight designs fail in heavy industry service. Generic conveyors don’t address extreme conditions. Custom engineering based on actual application requirements produces conveyor systems appropriate for heavy industry’s demanding environment.
Discuss Your Heavy Industry Conveyor Requirements
If you need conveyor systems for heavy industry applications—whether for foundry operations, steel fabrication, heavy equipment manufacturing, or other extreme-duty service—Custom Conveyor & Equipment Corporation can help.
Contact our engineering team at (319) 449-3322 or through our contact page to discuss your heavy industry material handling requirements. We’ll work with you to develop conveyor solutions engineered for the extreme loads and harsh conditions your application presents.
